Description

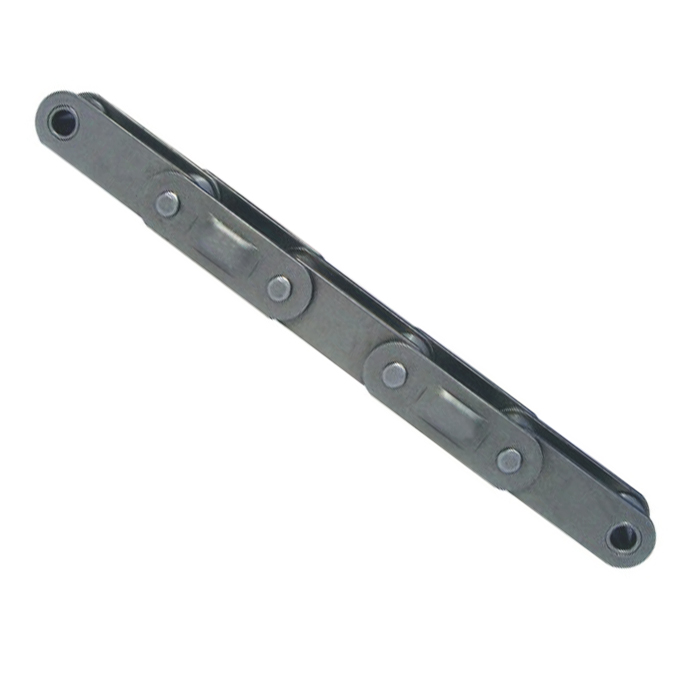

CA627 CA550D CA555D CA557D CA620D CA2062H Steel Conveyor CA Type Agricultural Chain
CA Type Agricultural Chain
This corn head gathering chain assembly fits Fantini corn head gathers. What separates this chain assembly from others is that it uses an extreme-duty CA627 chain that is assembled using special high-strength heat-treated components and features a solid roller design for increased performance and durability. These chains are made with chrome pins which can make them last twice as long. It has seven (6) CPEF2 attachments/ gathering lugs that are spaced every 15.35″ and it is 78 links long, which is 92.12″ total.
|

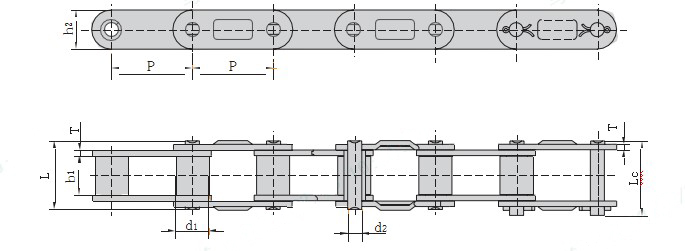

Chain No
|
Pitch
|
Roller diameter
|
Width between inner plates
|
Pin diameter
|
Pin length
|
Plate dimension
|
Ultimate tensile strength
|
||
|
P
|
d1 max
|
b1 min
|
d2 max
|
L
max |
Lc max
|
h2 max
|
T
max |
Q
min |
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kN/lbf
|
|
|
CA627
|
30.00
|
15.88
|
19.05
|
8.28
|
36.1
|
39.4
|
20.5
|
3.00
|
50.00/11247
|
|
CA550D
|
41.40
|
16.87
|
19.81
|
7.19
|
35.0
|
38.0
|
19.3
|
2.80
|
39.10/8886
|
|
CA555D
|
41.40
|
16.87
|
12.70
|
7.19
|
29.1
|
32.0
|
19.3
|
3.10
|
39.10/8886
|
|
CA557D
|
41.40
|
17.78
|
20.24
|
8.00
|
37.4
|
40.6
|
23.1
|
3.10
|
55.61/12639
|
|
CA620D
|
42.01
|
17.91
|
24.51
|
7.19
|
41.8
|
45.2
|
20.2
|
3.25
|
39.10/8886
|
|
CA2062H
|
38.10
|
22.23
|
12.57
|
5.94
|
29.2
|
31.6
|
18.0
|
3.25
|
31.10/6992
|
CA Type Agricultural Chains
C80F3 OR Pitch: 25.4mm
Roller diameter: 15.88mm
Width between inner plates:15.78mm
Pin diameter: 7.92mm
Pin length: L36.6mm Lc 38.7mm Plate depth: 24.0mm Plate thickness: 3.25mm Ultimate tensile strength: 56.7/12886 kN/lbf Average tensile strength: 69.4kN
