Description
S Type Steel Agricultural Chain for Round Balers
Destination
Manufacture of conveyor chains for feeder house and elevators of harvest combines. This spare part is used for replacing a worn out or damaged unit during repairs.
Properties
The product is in the form of a chain consisting of alternating internal and external links. Some part of external links in a
certain sequence is equipped with special angular straps with holes for fixing guide plates or scrapets with lining. Characterized by the pitch of the chain, the type of fasteners and the order of their location.
Peculiarities:
Factory packing (mostly) – a chain segment 5 meters length.
Manufacture of conveyor chains for feeder house and elevators of harvest combines. This spare part is used for replacing a worn out or damaged unit during repairs.
Properties
The product is in the form of a chain consisting of alternating internal and external links. Some part of external links in a
certain sequence is equipped with special angular straps with holes for fixing guide plates or scrapets with lining. Characterized by the pitch of the chain, the type of fasteners and the order of their location.
Peculiarities:
Factory packing (mostly) – a chain segment 5 meters length.

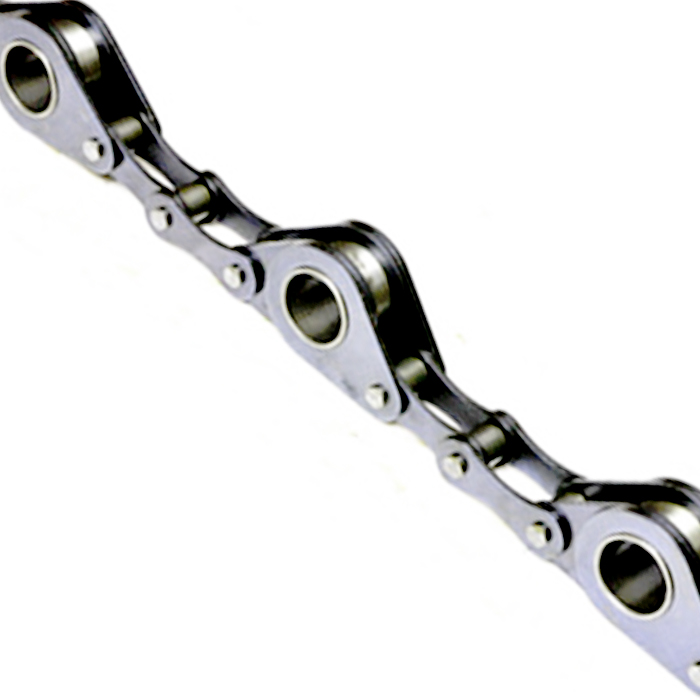

Roller Chain For round balers
We offer a full and compete line of high-quality roller chain attachments and roller chain attachment assemblies right off the shelf. Our inventory of attachments range in quality, material, and type. We have Economy Plus, General Duty Plus, and Premier Series attachments in stock. As well as stainless steel, nickel-plated, carbon, and dacromet coated attachments all available in ANSI and Metric (ISO & DIN) standard sizes. We also keep pre-assembled chains in-stock for most standard roller chain sizes and configurations, but if we don’t have it on the shelf we can build or assemble the attachment chain in the matter of a few days.

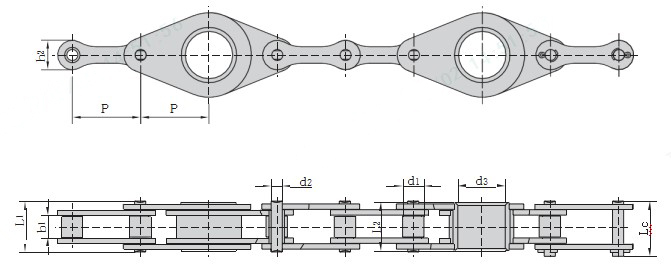

Roller Chain For round balers
|
Chain No
|
Pitch
|
Roller diameter
|
Width between inner plates
|
Pin diameter
|
Hollow pin inner diameter
|
Pin length
|
Inner plate depth
|
||
|
P
|
d1 max
|
b1 min
|
d2 max
|
d3 min
|
L1
max |
L2
max |
Lc max
|
h2 max
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
|
216BF1
|
50.8
|
15.88
|
17.02
|
8.28
|
35.3
|
37.8
|
35.8
|
41.3
|
22.0
|
|
CA650F3
|
50.8
|
19.05
|
19.05
|
9.53
|
35.3
|
40.4
|
37.8
|
44.7
|
25.0
|
we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
