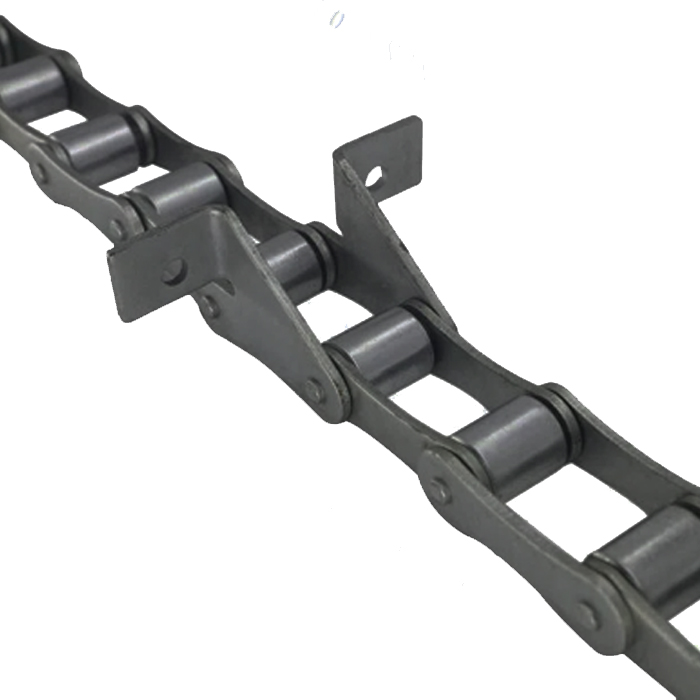

S Type Steel Agricultural Chain With Attachment
We offer a full and compete line of high-quality roller chain attachments and roller chain attachment assemblies right off the shelf. Our inventory of attachments range in quality, material, and type. We have Economy Plus, General Duty Plus, and Premier Series attachments in stock. As well as stainless steel, nickel-plated, carbon, and dacromet coated attachments all available in ANSI and Metric (ISO & DIN) standard sizes. We also keep pre-assembled chains in-stock for most standard roller chain sizes and configurations, but if we don’t have it on the shelf we can build or assemble the attachment chain in the matter of a few days.
Conveyor Roller Chain
Conveyor Roller Chain
Standard roller chain attachments includes A-1, K-1, SA-1, and SK-1 style attachments. These can be assembled onto the pin link (outside link), roller link (inside link) or as individual unassembled attachment links.
|

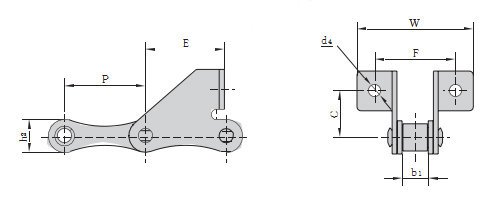

Chain No.
|
P
|
b1
|
Ｃ
|
E
|
F
|
W
|
d4
|
h2
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
|
S32SD
|
29.21
|
15.88
|
20.00
|
19.2
|
58.0
|
78.0
|
6.4
|
13.2
|
|
S51SDF1
|
38.10
|
16.00
|
19.65
|
20.0
|
56.0
|
82.0
|
6.4
|
17.3
|
|
S52SDF1
|
38.10
|
15.80
|
19.56
|
20.0
|
56.0
|
82.0
|
6.4
|
17.3
|
|
S52SDF2
|
38.10
|
22.20
|
20.20
|
37.2
|
57.6
|
86.2
|
6.5
|
16.4
|
|
S52SD
|
38.10
|
22.23
|
20.00
|
19.2
|
62.0
|
88.5
|
6.4
|
17.3
|
|
S52F4
|
38.10
|
15.80
|
20.60
|
37.0
|
53.8
|
69.5
|
6.4
|
16.7
|
|
S52F8
|
38.10
|
22.23
|
20.60
|
37.0
|
60.7
|
76.4
|
6.4
|
17.3
|
|
S52F9
|
38.10
|
18.50
|
20.00
|
18.5
|
54.5
|
71.0
|
6.5
|
16.5
|
|
S52LSD
|
38.10
|
16.40
|
20.00
|
17.5
|
54.5
|
71.0
|
6.5
|
16.5
|
|
S52LF1SD
|
38.10
|
22.02
|
20.00
|
17.5
|
54.5
|
71.0
|
6.5
|
16.5
|
|
S52LF2SD
|
38.10
|
16.00
|
20.00
|
19.0
|
54.6
|
76.6
|
6.5
|
17.0
|
|
S52F12SD
|
38.10
|
13.00
|
20.00
|
30.0
|
47.5
|
83.4
|
6.4
|
17.3
|
|
S52LVSD
|
38.10
|
17.80
|
20.00
|
19.2
|
62.0
|
85.5
|
6.4
|
16.7
|
|
S45F1
|
41.40
|
22.23
|
21.00
|
25.0
|
62.4
|
83.4
|
8.5
|
17.3
|
|
S45SDF2
|
41.40
|
22.23
|
21.00
|
28.5
|
62.4
|
83.4
|
8.5
|
17.3
|
|
S45W-F1
|
41.40
|
22.23
|
20.00
|
37.0
|
58.0
|
87.0
|
6.6
|
17.3
|
|
S45W-F4
|
41.40
|
22.23
|
20.50
|
33.2
|
58.0
|
85.6
|
6.6
|
17.3
|
|
S45SD
|
41.40
|
22.23
|
17.00
|
28.6
|
58.0
|
81.2
|
8.5
|
17.3
|
|
S55F2
|
41.40
|
22.23
|
20.00
|
37.0
|
58.0
|
87.0
|
6.4
|
17.3
|
|
S55F3
|
41.40
|
22.23
|
20.50
|
33.2
|
58.0
|
85.6
|
6.6
|
17.3
|
|
S55F4
|
41.40
|
22.23
|
20.00
|
37.0
|
58.0
|
87.0
|
6.6
|
17.3
|
|
S55F6
|
41.40
|
22.23
|
20.00
|
30.0
|
58.0
|
87.0
|
6.4
|
17.3
|
|
S55F7
|
41.40
|
22.23
|
20.50
|
33.2
|
62.0
|
85.6
|
6.6
|
17.3
|
|
S55RSDF1
|
41.40
|
22.23
|
20.50
|
33.2
|
62.0
|
85.6
|
6.6
|
22.4
|
|
55VSDF1
|
41.40
|
22.23
|
20.50
|
33.2
|
62.0
|
85.6
|
6.6
|
20.0
|
|
55VSDF2
|
41.40
|
22.23
|
20.50
|
33.2
|
62.0
|
85.6
|
8.3
|
20.0
|
|
55VSDF4
|
41.40
|
22.23
|
23.40
|
28.5
|
57.5
|
83.4
|
6.5
|
20.0
|
|
S55SDF2
|
41.40
|
22.23
|
20.00
|
33.4
|
58.0
|
86.0
|
6.6
|
17.3
|
|
S55SDF4
|
41.40
|
22.23
|
25.00
|
36.0
|
58.0
|
85.0
|
6.5
|
17.3
|
|
S62SD
|
41.91
|
26.20
|
20.00
|
32.6
|
61.4
|
92.0
|
6.4
|
17.3
|
