CA550 Chain With F6/F9 Attachments

The CA550 attachment chain is a versatile roller chain that incorporates different attachments on every 2nd link, making it ideal for attaching cross rods in parallel running chains. These attachments are riveted for maximum strength and durability. In addition, the CA550 roller chain is pre-lubricated for improved wear protection and retention.

Category:

Description

Agricultural Steel Conveyor Chain CA550 Chain With F6/F9 Attachments

CA550F6 CA550F9

The CA550 attachment chain is a versatile roller chain that incorporates different attachments on every 2nd link, making it ideal for attaching cross rods in parallel running chains. These attachments are riveted for maximum strength and durability. In addition, the CA550 roller chain is pre-lubricated for improved wear protection and retention.

CA550 Chain With F6 Attachments

CA550 Chain With F6 Attachments

               CA550 Chain With F6 Attachments

We can supply CA550 roller chain with F6 attachments in any configuration needed to meet your exact needs. This F6 attachment is manufactured using precision-hardened components to ensure durability, working life, and strength.

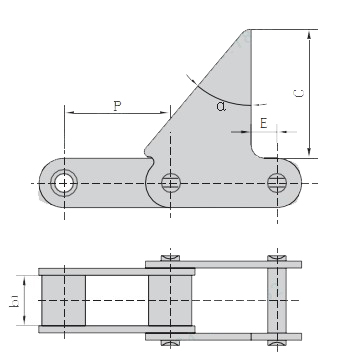

Chain No
P
b1
C
α
cE
mm
mm
mm
mm
CA550F6
41.4
19.81
50.0
40
10
CA550F9
41.4
19.81
40.7
40
10



Applications of CA550 Chain with Attachments

  • Agriculture
  • Conveyors
  • Corn Gathering
  • Elevator Feed Stations
  • Feeder House
  • Forage Harvesters and Baggers
  • Grain Handling
  • Manure SpreadersCA550 Chain with Attachments

Select CA550 Chain with Attachment from Ever-power

Ever-power transmission group is a professional transmission chain supplier. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the production, processing, and sales of the drive chains, conveyor chains, chain accessories, machinery parts, and so on, forming an “aluminum, fine, special, creative” separate chain development and production system. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia. Trust us, and we will provide you with the best quality CA550 chain with attachments! Contact us now!

CA550 Chain Attachment

Sprockets for Roller Chains

There are many factors to consider when selecting sprockets for roller chains. Most important is the number of teeth, which can vary from 16 to 17. The higher the number of teeth, the longer the life of the sprocket and the chain. Teeth are usually made from the same material as the sprocket, though there are also removable teeth options available. Hardening sprocket teeth can dramatically increase their life. The most common way to do this is by induction hardening.

Sprockets can be made from a variety of materials, including aluminum, cast iron, bronze, and manganese steel. Many are also made from Delrin and nylon. They are available in 0.05-inch through 48-inch sizes. If you are looking for a specific size, contact us! We are one of the professional sprocket suppliers that can offer customized sprockets according to your requirements.

Choosing the proper sprockets is vital for the life of a roller chain. Properly selecting the sprocket will ensure smooth rotation and maximum transmission efficiency. There are many different types of sprockets for roller chains available, so it’s important to choose the right one for your specific needs.

Another factor that determines the lifespan of a roller chain is the type of lubrication. Different lubrication methods will lead to different levels of wear and tear.
