Description

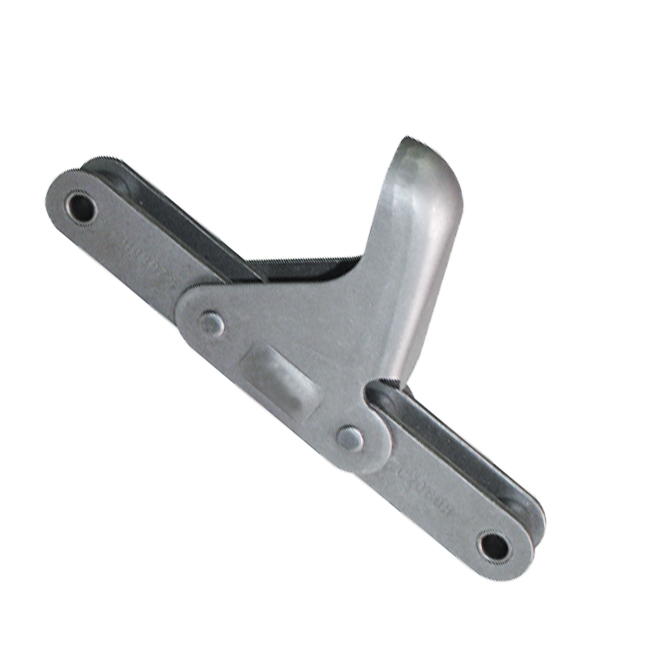

CA2060-C6E CA2060H-C6E CA550V-C6EF1 Chains Agricultural Steel Conveyor CA2060 Roller Chains With attachment
|

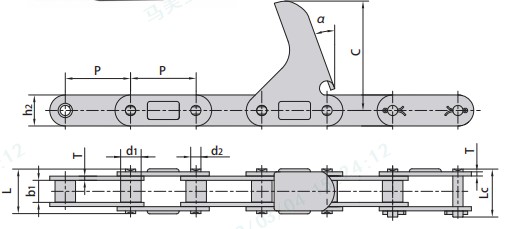

Chain No
|
Pitch |
Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate dimension
|
|||
|
P
|
d1 max
|
b1 min
|
d2 max
|
L
max |
Lc max
|
h2 max
|
T
|
α
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
|
CA2060-C6E
|
38.1
|
11.91
|
12.57
|
5.94
|
25.9
|
28.3
|
18.0
|
2.42
|
20.0°
|
|
CA2060H-C6E
|
38.1
|
11.91
|
12.57
|
5.94
|
31.0
|
31.6
|
18.0
|
3.25
|
22.5°
|
|
CA550V-C6EF1
|
41.4
|
16.80
|
19.05
|
8.28
|
36.1
|
39.1
|
22.0
|
3.00
|
15.0°
|
we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
